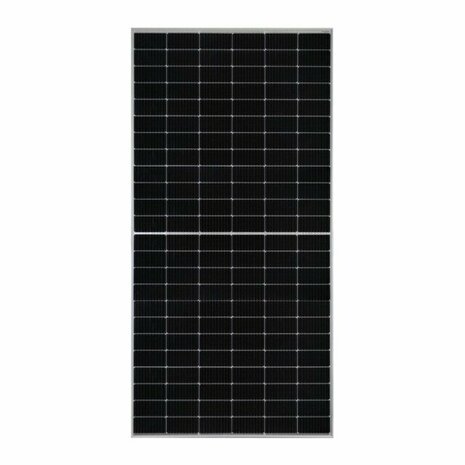

JA Solar JAM72D40/LB 595W Bifacial Double Glass Silver Frame

Technische details

Nominaal vermogen (W)   585
Module type  Bifacial Framed
Number of cells  144 (72)
Watt/m²  225,0
Module surface (m²)  2,646
Cell  Half-cut
Wafer Size  M10 (182mm)
Module efficiency  22,5%
Temp. Coef PMAX  -0,3%/K
Cell Technology  TOPCon N-Type
Glass Type  Dual Glass
Panel frame color  Silver
Panel backsheet type  Glass (transparent)
Dimensions  233,3 x 113,4 x 3,0 cm
Weight  32,5kg
Cable length +  1 400mm - MC4-EVO2 connectors
Cable length -  1 400mm - MC4-EVO2 connectors
Junction box  Standard - Top
Product warranty  12 years
Performance warranty  87,4% after 30 years
